Architecture

Google Distributed Cloud (GDC) Sandbox lets you explore and validate workloads in a simulated environment without requiring physical air-gapped hardware. The platform replicates the physical and network infrastructure of a Google Distributed Cloud air-gapped installation by using virtual machines and Google Cloud services.

The GDC Sandbox platform consists of the following components:

  1. Admin clusters used to deploy the GDC components
  2. Components that provide Block and Object Storage
  3. Kubernetes clusters with worker nodes to run customer workloads
  4. A gateway VM that users connect to using Google Cloud authentication and Cloud IAP

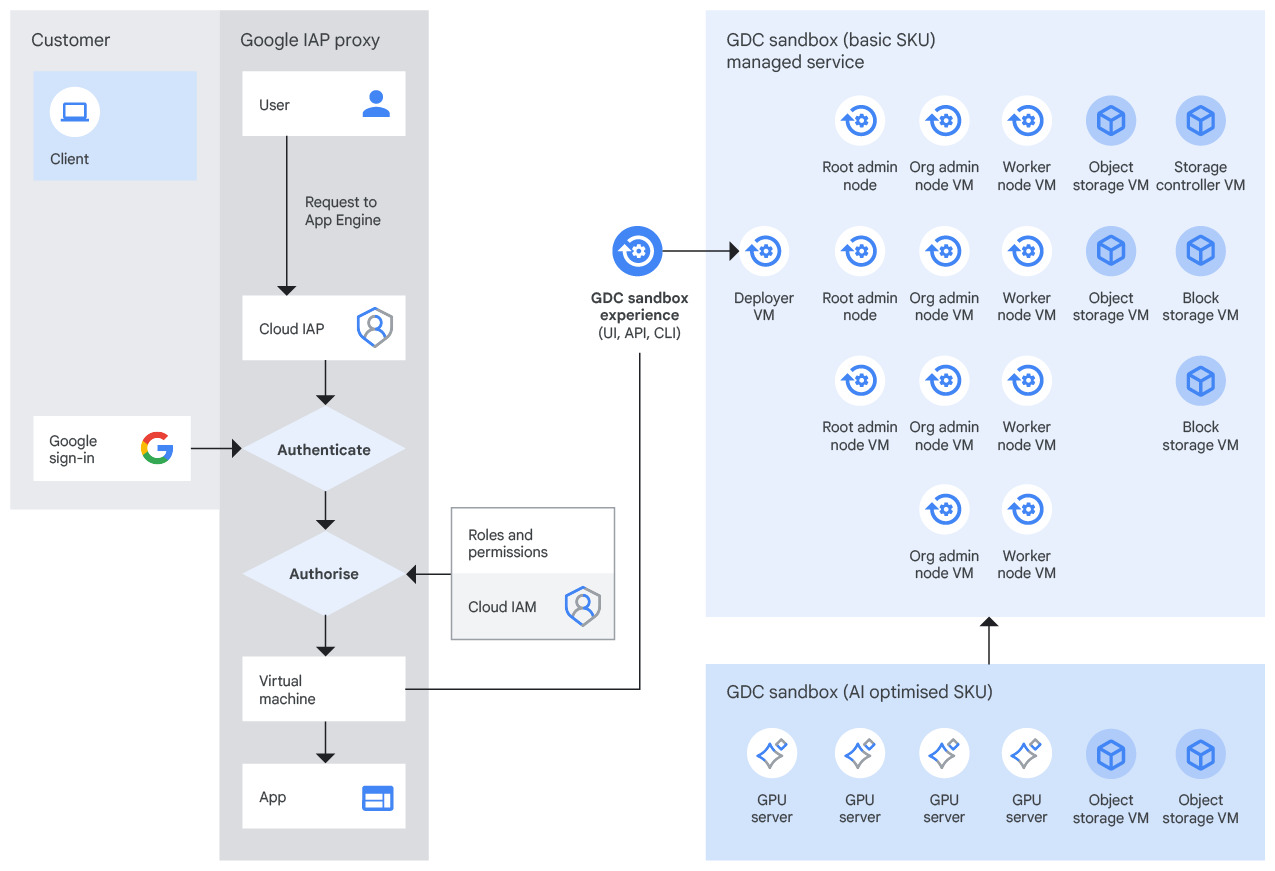

Architecture of the sandbox
